Eta-ON is expandable to any applications. If you want to power your products without wires, Contact Us!
Eta-ON
The next generation
of wireless power transfer technology

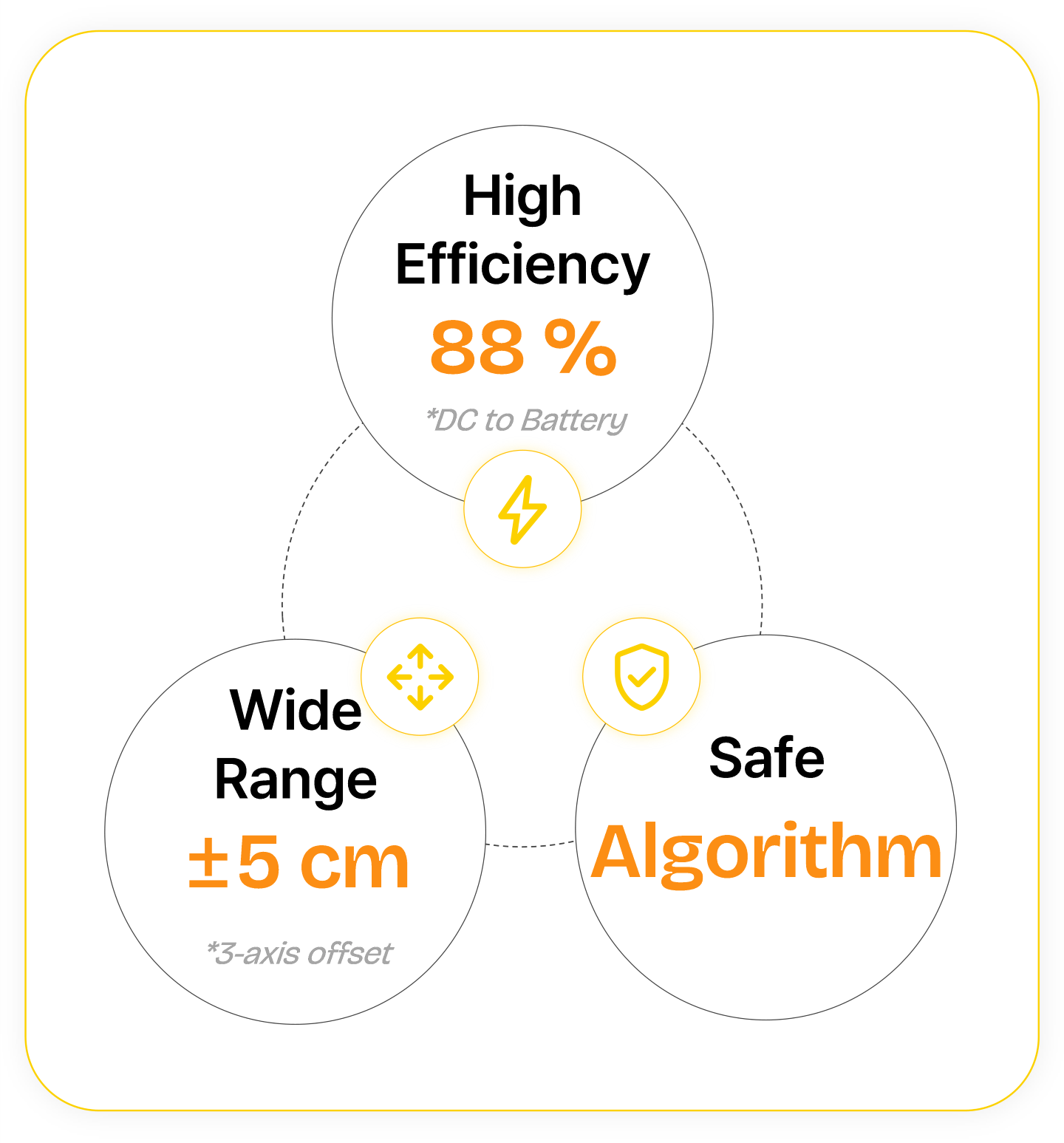

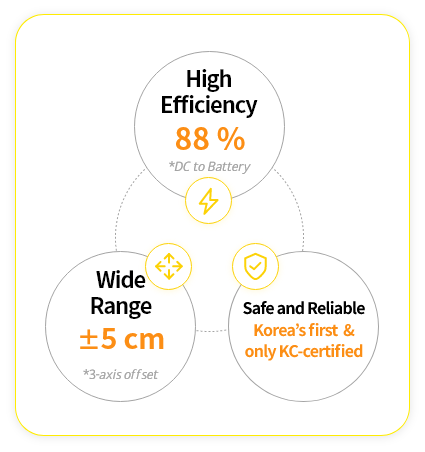

  • High Power Charging

    High Efficiency Power Amplifier

  • Robust to Misalignment

    Mutual Inductance Tracking

  • Real-time Protection

    OVP, OCP, OTP algorithm

  • Foreign Object Detection

    AI based FOD algorithm

  • Waterproof & Dustproof

    IP66 (Tx & Rx coil module)

Applications

Roadmap

Roadmap

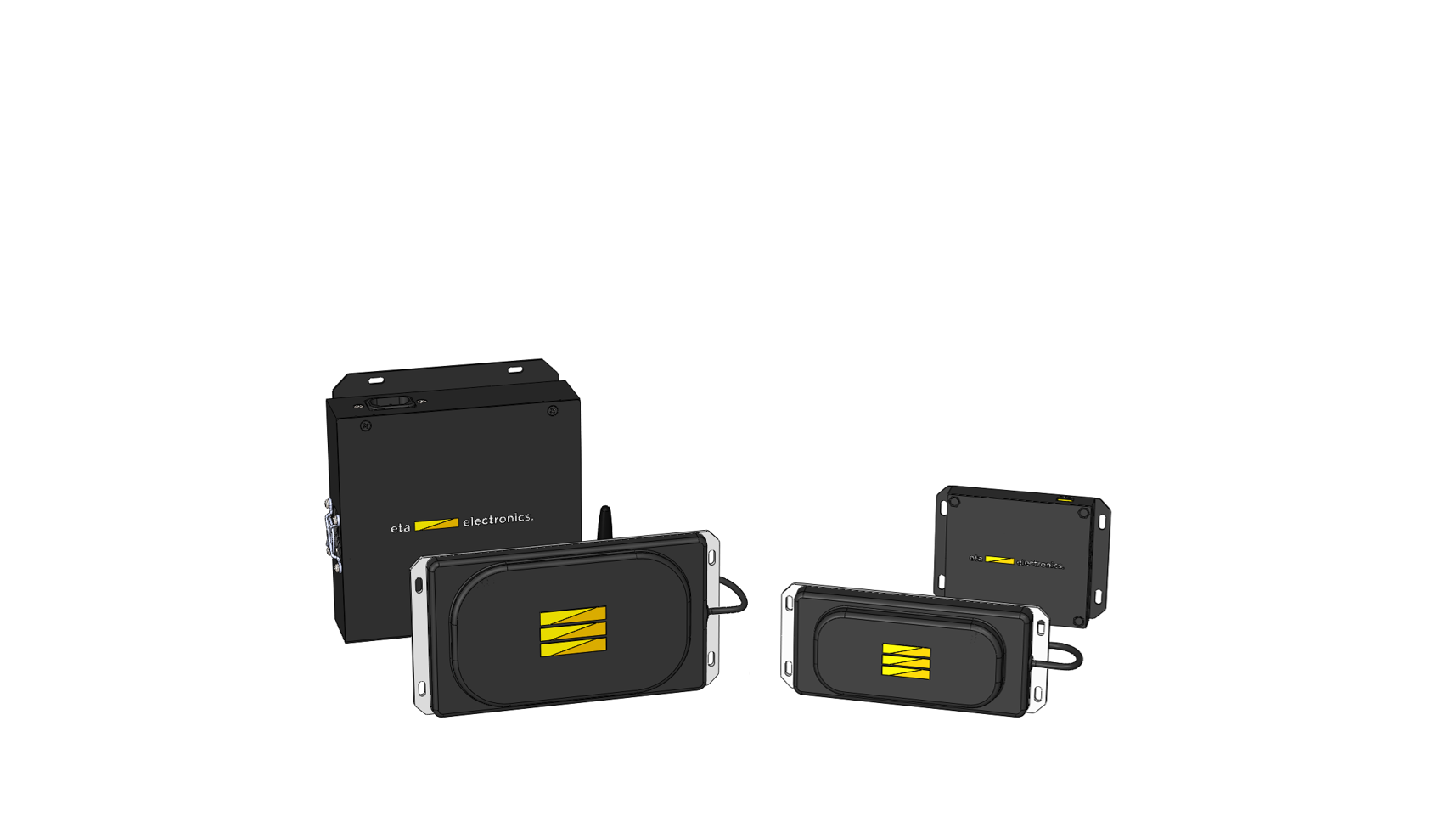

CT-200

1
Tx control module
155 mm X 150 mm X 42 mm
3
Rx control module
110 mm X 83 mm X 18 mm
2
Tx coil module
200 mm X 106 mm X 18 mm
4
Rx coil module
168 mm X 70 mm X 24.5 mm
Transmitter CT-200
System Frequency 79 - 90 kHz
Charging Efficiency
(Max.)
88 % (DC to Battery)
Charging Range 0 – 40 mm distance offset
±20 mm x-axis offset
±20 mm y-axis offset
Receiver CR-24-05 CR-36-04 CR-48-03
Charging Voltage
Range
15 - 29 V 25 - 42 V 38 - 53.6 V
Charging Current
(Max.)
5 A 4 A 3 A
Charging Power
(Max.)
145 W 168 W 160.8 W

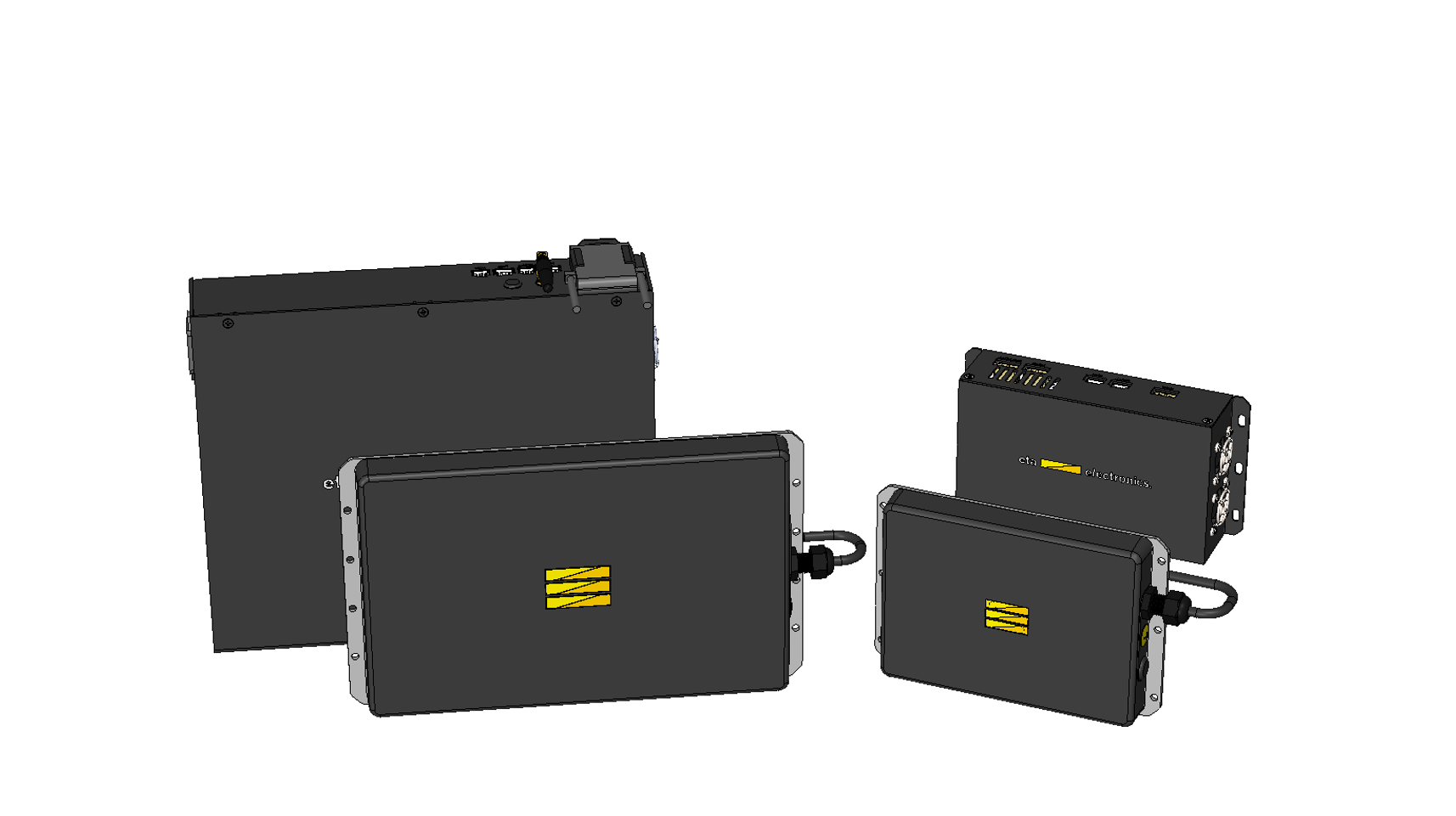

DT-800

1
Tx control module
300 mm X 254 mm X 59 mm
3
Rx control module
198 mm X 103 mm X 47 mm
2
Tx coil module
304.5 mm X 185 mm X 28 mm
4
Rx coil module
202.5 mm x 135.12 mm X 28 mm
Transmitter DT-800
System Frequency 79 - 90 kHz
Charging Efficiency
(Max.)
90 % (DC to Battery)
Charging Range 0 – 50 mm distance offset
±70 mm x-axis offset
±40 mm y-axis offset
Receiver DR-24-10 DR-36-10 DR-48-10
Charging Voltage
Range
15 - 29 V 25 - 42 V 38 - 53.6 V
Charging Current
(Max.)
10 A 10 A 10 A
Charging Power
(Max.)
290 W 420 W 536 W

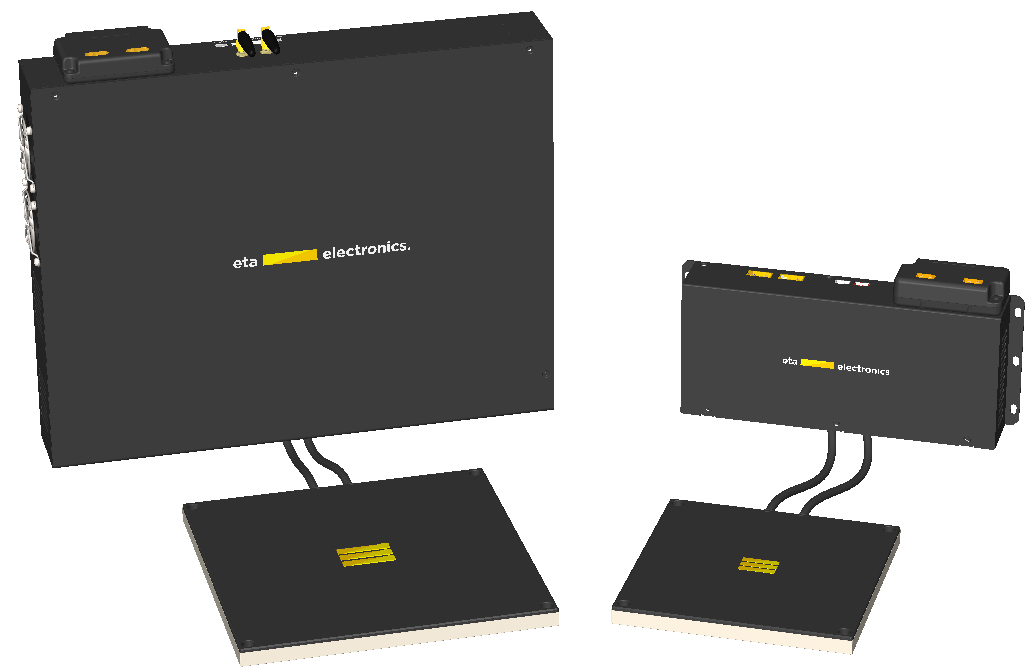

DT-3000

1
Tx control module
395 mm X 300.8 mm X 70 mm
3
Rx control module
289.2 mm X 119 mm X 50.6 mm
2
Tx coil module
335.4 mm X 117 mm X 33 mm
4
Rx coil module
229.5 mm x 96.5 mm X 27.5 mm
Transmitter DT-3000
System Frequency 79 - 90 kHz
Charging Efficiency
(Max.)
90 % (DC to Battery)
Charging Range 0 – 50 mm distance offset
±40 mm x-axis offset
±30 mm y-axis offset
Receiver DR-40A
Charging Voltage
Range
15 - 58.8 V
Charging Current
(Max.)
40 A
Charging Power
(Max.)
2,352 W
